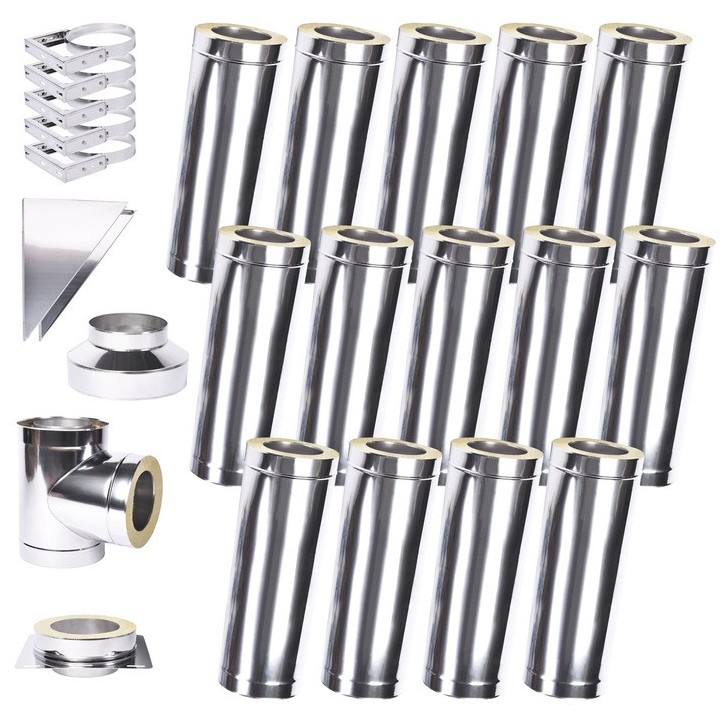

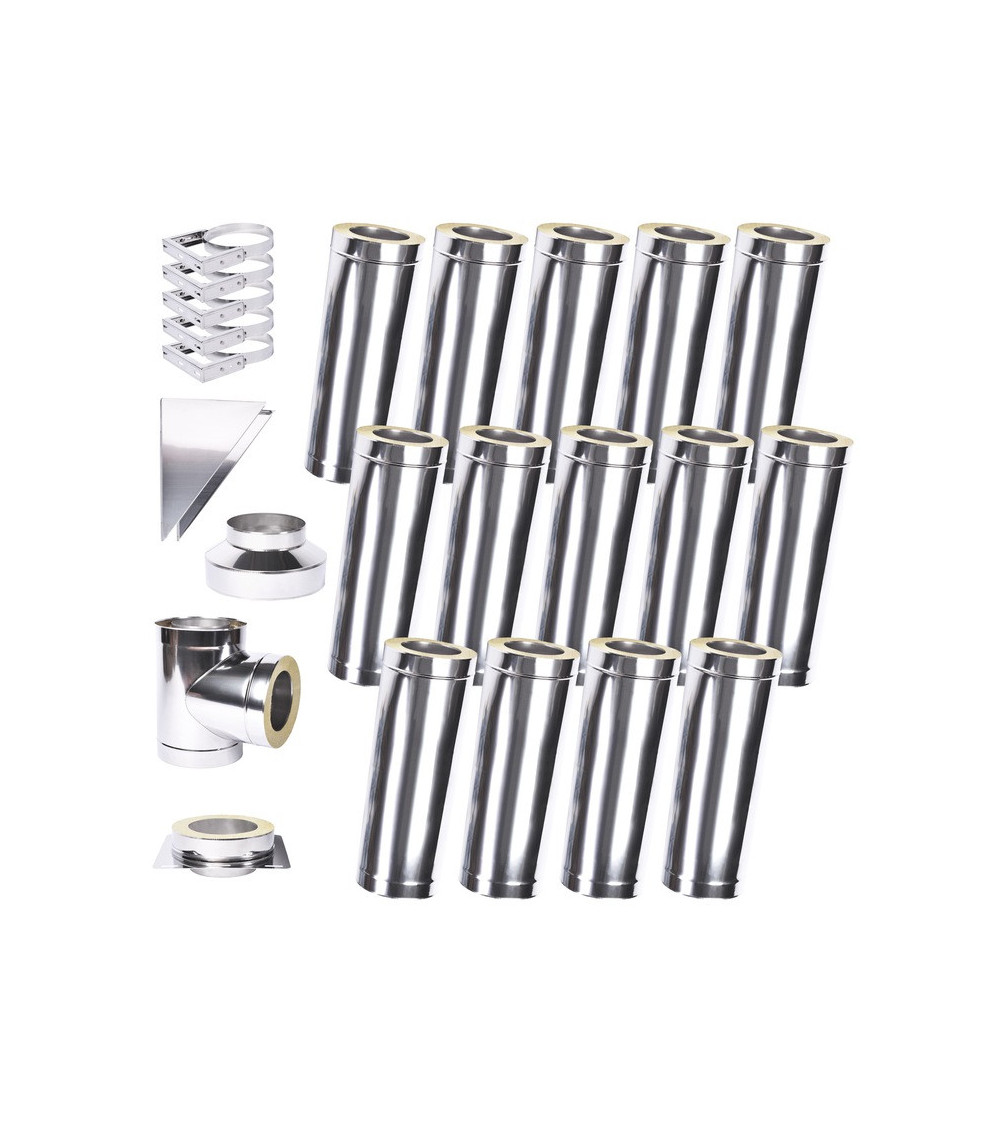

KIT CONTENTS

• 1.0 Meter tube - 14  pieces
• 90° Tee
• adapter
• Chimney support up to 20 cm
• The clamp is adjustable up to 20 cm
• The base of the chimney + condenser

Set Technical Parameters

• 316l stainless steel:  resistant to acids and heat
• steel grade:  1.4404
• welding technique   :  plasma welding
• sheet thickness: 0.6 mm very resistant
  • inner diameter:  130/160/180 or 200 mm
  • outer diameter:  230/260/280 or 300 mm
• temperature class:  T600
• pressure class:  N1
• rock wool insulation thickness: 50 mm
• condensation resistance:  W
• soot fire resistance:  G50
• type of fuel: wood, gas, oil

NB: when choosing the diameter in the drop-down menu, note that this is the internal diameter.

0The outer diameter is 100 mm  thicker which corresponds to the insulation
